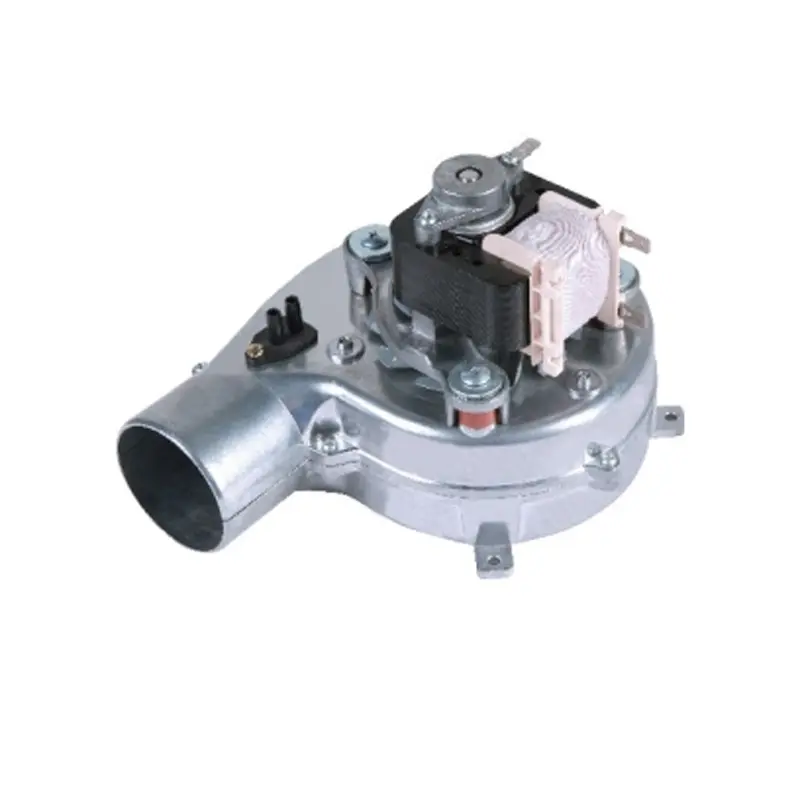

JF SERIES MOTOR - (WALL-MOUNTED FURNACE FAN).jpg

YJF SERIES MOTOR - (WALL-MOUNTED FURNACE FAN)

1. This series motor has advantages, such as safety, reliability and long service life, able to be operated under high-temperature environment.
2. This series motor is applicable to wall-mounted fum aces, food baking machines, etc.
3. The performance size of this series motor can be designed and manufactured according to customer's requirements
Instructions for Use :Operating mode::S1 insulation grade: : Class F
Protection Class: :lP41 Environmental Temperature: : -30C~ + 80°C

product details

Product DisplaySENJUN

JF SERIES MOTOR - (WALL-MOUNTED FURNACE FAN)

Product introductionSENJUN

1. This series motor has advantages, such as safety, reliability and long service life, able to be operated under high-temperature environment.

2. This series motor is applicable to wall-mounted fum aces, food baking machines, etc.

3. The performance size of this series motor can be designed and manufactured according to customer's requirements

Instructions for Use :Operating mode::S1 insulation grade: : Class F

Protection Class: :lP41 Environmental Temperature: : -30C~ + 80°C

Motor performance parameter tableSENJUN

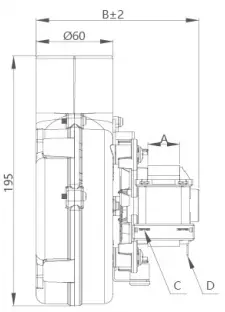

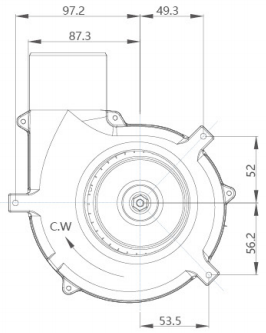

Model	Rated voltage V	Rated frequency HZ	Input power W	Rated current A	Rated speed r/min	Flow rate(max) m³/h	Static pressure Pa	size				Classification
Model	Rated voltage V	Rated frequency HZ	Input power W	Rated current A	Rated speed r/min	Flow rate(max) m³/h	Static pressure Pa	A mm	B mm	C mm	D mm	Classification
YJF61-25	220-240	50/60	28	0.25	1800	85	180	25	Can be customized according to customer requirements			EBFH
YJF61-25	110-120	60	28	0.25	2450	85	180	25	Can be customized according to customer requirements			EBFH
YJF-61-30	220-240	50/60	35	0.32	2000	130	220	30	Can be customized according to customer requirements			EBFH
YJF-61-30	110-120	60	35	0.32	2550	130	220	30	Can be customized according to customer requirements			EBFH
YJF-61-35	220-240	560/0	45	0.42	2250	150	260	35	Can be customized according to customer requirements			EBFH
YJF-61-35	110-120	60	45	0.42	2650	150	260	35	Can be customized according to customer requirements			EBFH
YJF-61-40	220-240	50/60	55	0.48	2450	160	300	40	Can be customized according to customer requirements			EBFH
YJF-61-40	110-120	60	55	0.48	2750	160	300	40	Can be customized according to customer requirements			EBFH
