Tube Fin and Microchannel Heat Exchangers Compared
When choosing between tube-fin and microchannel heat exchangers, I always consider their design and performance differences. Tube-fin heat exchangers, including Copper Aluminum Fin Heat Exchangers, stand out for their durability and ease of repair, making them ideal for industrial applications. They allow customization of fin density and tube diameter, which adds flexibility. On the other hand, microchannel heat exchangers excel in compactness and efficiency. Their lightweight design suits modern HVAC systems and automotive cooling. However, their intricate structure can make repairs more challenging. Whether it’s for air conditioning, refrigeration, or a copper tube and copper fin industrial large-scale table cooler air-cooled cooler, selecting the right heat exchanger ensures optimal performance.
Key Takeaways
- Tube-fin heat exchangers are strong and simple to fix. They work well for factories and big machines.
- Microchannel heat exchangers are small and save energy. They are great for modern air conditioners and car cooling systems.
- Copper aluminum fin heat exchangers move heat well and kill germs. This helps keep things clean.
- Think about what you need before picking a heat exchanger. This helps it work better and last longer.
- Tube-fin systems are cheap and good for big factories. Microchannel ones save energy and work efficiently.
- Taking care of both types is important. This helps them last longer and work well.
- Microchannel heat exchangers use less refrigerant, up to 50%. This makes them better for the environment.
- Using materials like copper and aluminum makes heat exchangers stronger and better at their job.
Construction and Working Principles
When I think about tube-fin heat exchangers, their design stands out for its simplicity and effectiveness. These systems rely on a combination of tubes and fins to transfer heat efficiently. Here’s how they work:
- Tubes carry the heat transfer fluid, which could be water, refrigerant, or another medium.
- Fins surround the tubes, increasing the surface area to enhance heat transfer.
- Shells guide external air or fluid over the fins, ensuring maximum heat exchange.
To give you a clearer picture, here’s a breakdown of their key components:
| Component | Description |
|---|---|
| Tubes | Core pathways for fluid flow, transferring heat between fluids. |
| Fins | Extended surfaces that increase heat transfer efficiency by enhancing surface area. |
| Tube Sheets | Support and align the tubes, maintaining proper spacing. |
| Headers | Connect tubes to the fluid distribution system, ensuring even fluid distribution. |
| Baffles | Guide fluid flow, control velocity, and prevent bypassing of tubes. |
| Shell | Encloses tubes and fins, providing structural support and protection. |
| Fluid Connections | Inlet and outlet points for hot and cold fluids, crucial for efficient operation. |
| Support Structures | Braces or hangers used in larger systems to secure the heat exchanger. |
| Thermal Insulation | Added to minimize heat loss, enhancing energy efficiency. |
The materials used in these components also play a big role. I’ve seen copper, aluminum, stainless steel, and even titanium used. Copper is a favorite for its excellent thermal conductivity and corrosion resistance, while aluminum is lightweight and cost-effective. These materials make tube-fin heat exchangers versatile and reliable.
Advantages
Durability and Longevity
One of the reasons I trust tube-fin heat exchangers is their durability. They can handle harsh environments and last for years with proper care. Materials like copper and stainless steel ensure they resist corrosion and wear, even in demanding applications.
Cost-Effectiveness
Tube-fin heat exchangers are often more affordable than other types. Their simple design and widely available materials, like aluminum and copper, keep manufacturing costs low. This makes them a great choice for budget-conscious projects.
Ease of Maintenance
I find these systems easy to maintain. Their straightforward design allows for quick cleaning and repairs. If a tube gets clogged or damaged, it’s usually simple to replace without dismantling the entire unit.
Limitations
Bulkiness and Space Requirements
One drawback I’ve noticed is their size. Tube-fin heat exchangers tend to be larger than newer technologies like microchannel heat exchangers. This can make them less suitable for compact spaces or portable systems.
Lower Efficiency in Compact Spaces
While they perform well in larger setups, their efficiency drops in tight spaces. The bulky design limits how much heat they can transfer in smaller environments. For applications requiring high efficiency in a small footprint, I’d recommend exploring alternatives like Copper Aluminum Fin Heat Exchangers.
Overview of Microchannel Heat Exchangers
Design and Functionality
When I look at microchannel heat exchangers, their design immediately stands out for its innovation. These systems use flat tubes with microchannels, which significantly enhance heat transfer efficiency. The design includes two headers—one for the inlet and another for the outlet—and louvered fins that maximize the surface area for heat exchange. This structure allows refrigerant to flow for a longer duration, improving thermal energy transfer.
Compared to tube-fin heat exchangers, microchannel designs offer several advantages. They create lower air pressure drops, which reduces the power needed for fans. This makes them more energy-efficient. Here’s a quick comparison to highlight the differences:
| Feature | Microchannel Heat Exchangers | Tube-Fin Heat Exchangers |
|---|---|---|
| Design Structure | Flat tubes with microchannels | Round tubes with fins |
| Thermal Performance | Higher thermal performance, reduced size, lower pressure drops | Traditional performance |
| Surface Area | Increased due to microchannels | Enhanced by fins |
| Weight | Lighter due to reduced material use | Heavier due to round tubes |
| Corrosion Resistance | Higher due to use of long-life alloys | Varies with materials used |
| Airside Efficiency | Lower air pressure drop, reduced fan power consumption | Higher air pressure drop |
This advanced design makes microchannel heat exchangers ideal for modern applications where efficiency and compactness are critical.
Benefits
Compact Size and Lightweight Design
One of the first things I notice about microchannel heat exchangers is their compact size. Their flat tube design uses less material, making them lighter than traditional tube-fin systems. This lightweight structure is perfect for applications where space and weight are limited, such as automotive cooling or modern HVAC systems.
High Thermal Efficiency
Microchannel heat exchangers excel in thermal efficiency. The flat tubes with microchannels increase the surface area for heat exchange. Louvered fins further enhance the heat transfer coefficient by up to 50% compared to traditional fins. This design ensures better performance even in smaller units. Additionally, the brazed assembly method minimizes contact resistance, boosting overall efficiency.
Reduced Refrigerant Charge
Another advantage I appreciate is their ability to operate with less refrigerant. Microchannel systems can use up to 50% less refrigerant than traditional designs. This not only reduces environmental impact but also lowers operating costs. The smaller diameter tubes also improve single-phase and two-phase heat transfer, making these systems highly efficient.
Drawbacks
Higher Initial Cost
While microchannel heat exchangers offer many benefits, their initial cost can be higher. The advanced design and materials, such as long-life alloys, contribute to this expense. However, I find that the long-term energy savings often offset the upfront investment.
Maintenance Challenges
Maintaining these systems requires attention to detail. The small port sizes in microchannel tubes can clog if water quality isn’t carefully managed. Corrosion inhibitors are also necessary when dissimilar metals are used in the pipework. These factors make maintenance more complex compared to traditional systems.
Susceptibility to Corrosion
Although microchannel heat exchangers use corrosion-resistant materials, they can still face challenges in certain environments. High water velocities may erode aluminum tubes over time. Additionally, thermal expansion of the coil body needs to be considered during installation to prevent damage.
Copper Aluminum Fin Heat Exchangers
What Are Copper Aluminum Fin Heat Exchangers?
When I think about Copper Aluminum Fin Heat Exchangers, their unique combination of materials stands out. These systems use copper tubes paired with aluminum fins to create an efficient heat transfer mechanism. Copper’s excellent thermal conductivity ensures quick heat dissipation, while aluminum fins maximize the surface area for heat exchange. This pairing results in a lightweight, durable, and highly efficient system.
What sets these heat exchangers apart is their antimicrobial properties. Copper inhibits the growth of bacteria, fungi, and viruses, keeping surfaces cleaner over time. In tests, copper fins reduced bacterial loads by 99.99% and fungal loads by 99.74%. This makes them ideal for applications where hygiene and air quality are critical. Unlike traditional aluminum-only systems, which can develop biofilms within weeks, these exchangers maintain a longer service life and cleaner operation.
Advantages of Copper Aluminum Fin Heat Exchangers
Enhanced Thermal Performance
I’ve always been impressed by the thermal performance of these heat exchangers. Copper’s high thermal conductivity allows for efficient heat transfer, while aluminum fins promote airflow and enhance energy transfer. Together, they create a system that operates with minimal energy loss. This combination ensures consistent performance, even in demanding environments.
Durability in Harsh Environments
Durability is another key advantage. Copper resists corrosion and oxidation, while aluminum forms a protective oxide layer that adds to its longevity. This makes Copper Aluminum Fin Heat Exchangers reliable in harsh conditions, such as industrial or outdoor settings. Their robust design reduces maintenance needs and extends their lifespan, saving time and costs in the long run.
Versatility Across Applications
These heat exchangers are incredibly versatile. I’ve seen them used in everything from refrigeration systems to medical cooling devices. Their lightweight design makes installation easier, while their efficiency suits a wide range of applications. Whether it’s a dehumidifier or an ice maker, these systems deliver consistent results.
Applications
Refrigerators and Freezers
Copper Aluminum Fin Heat Exchangers play a vital role in refrigerators and freezers. Their efficient heat transfer ensures optimal cooling, while their antimicrobial properties improve air quality inside the units. This makes them a popular choice for both residential and commercial refrigeration systems.
Medical Cooling Systems
In medical cooling systems, reliability is crucial. These heat exchangers provide consistent performance and resist corrosion, even in sensitive environments. Their antimicrobial features also help maintain sterile conditions, which is essential for medical applications.
Dehumidifiers and Ice Makers
I’ve noticed these exchangers excel in dehumidifiers and ice makers. Copper tubes and aluminum fins enhance heat transfer, ensuring efficient operation. Their lightweight design simplifies installation, while their durability reduces maintenance needs. This combination keeps operating costs low and performance high.
Heat Exchanger Comparison
Cost
When comparing the cost of tube-fin and microchannel heat exchangers, I notice distinct differences. Tube-fin heat exchangers generally have lower manufacturing costs. Their simple design and the availability of materials like copper and aluminum make them affordable. Repairs are also straightforward, which keeps maintenance expenses low. For budget-conscious projects, these systems are a practical choice.
Microchannel heat exchangers, on the other hand, often come with a higher initial price. Their intricate design and specialized production processes contribute to this. However, I’ve seen cases where their compact size and lightweight structure reduce material costs. They also improve energy efficiency, which can lower long-term operating expenses. In some applications, replacing older tube-fin systems with microchannel designs reduces the number of components needed, cutting down the overall system cost.
Here’s a quick summary of the cost factors:
- Tube-fin heat exchangers are cost-effective to manufacture and repair.
- Microchannel systems have higher upfront costs but may save money over time through energy efficiency and reduced material use.
Efficiency
Efficiency is where microchannel heat exchangers truly shine. Their flat tubes with microchannels provide a larger surface area for heat transfer. This design improves thermal performance and reduces air pressure drops. I’ve read that microchannel systems can be 20-40% more efficient than traditional tube-fin heat exchangers. This makes them ideal for applications requiring high energy efficiency, such as modern HVAC systems.
Tube-fin heat exchangers, while less efficient, offer versatility. Their design can be customized to meet specific heat transfer needs. They perform well in industrial settings where durability and robustness are more critical than compactness or efficiency. However, in smaller or space-constrained environments, their bulkier design limits their effectiveness.
Maintenance
Proper maintenance plays a crucial role in ensuring the longevity and efficiency of heat exchangers. I’ve worked with both tube-fin and microchannel heat exchangers, and their maintenance needs differ significantly. To help you understand, here’s a comparison of their requirements:
| Maintenance Requirement | Tube-Fin Heat Exchangers | Microchannel Heat Exchangers |
|---|---|---|
| Online monitoring of heat transfer | Yes | Yes |
| Integrity inspection | Yes | Yes |
| Mechanical integrity monitoring | Yes | Yes |
| Cleaning methods | Acid cleaning, sandblasting, high-pressure water jet | Not specified |
| Fouling control | Yes | Yes |
For tube-fin heat exchangers, I find cleaning to be straightforward. Methods like acid cleaning or high-pressure water jets effectively remove debris and fouling. Sandblasting is another option for tougher deposits. These systems are robust, so they tolerate mechanical cleaning well. Regular inspections of the tubes and fins help identify issues early, ensuring consistent performance.
Microchannel heat exchangers, on the other hand, require more careful handling. Their compact design and small channels make cleaning more challenging. I recommend using specialized cleaning solutions to avoid damaging the delicate structure. Monitoring water quality is essential to prevent clogging and corrosion. While these systems demand more attention, their high efficiency often justifies the effort.
In both cases, I always emphasize the importance of regular inspections. Checking for fouling, leaks, or mechanical wear ensures the system operates at peak efficiency. Online monitoring tools can also provide real-time data, making it easier to detect and address issues before they escalate.
Tip: Always follow the manufacturer’s guidelines for maintenance. This ensures the heat exchanger remains in optimal condition and avoids unnecessary repairs.
Application Suitability
Choosing the right heat exchanger depends on the specific application. I’ve noticed that tube-fin and microchannel heat exchangers excel in different scenarios. Here’s a quick breakdown:
| Application Type | Description |
|---|---|
| Large-Scale Industrial Applications | Ideal for industries with substantial heat loads and high-volume fluid flows, such as petrochemicals and power generation. |
| High-Performance Cooling Requirements | Suitable for applications like data centers and power plants that require exceptional cooling capabilities. |
Tube-fin heat exchangers are my go-to choice for large-scale industrial applications. Their robust design handles high heat loads and fluid volumes with ease. Industries like petrochemicals and power generation benefit from their durability and cost-effectiveness. These systems also perform well in environments where space isn’t a constraint.
For high-performance cooling, I often recommend microchannel heat exchangers. Their compact size and high thermal efficiency make them perfect for data centers and modern HVAC systems. They excel in space-constrained environments where every inch matters. Their ability to reduce refrigerant charge also makes them an eco-friendly option.
When deciding between the two, I always consider the specific needs of the application. Factors like heat load, available space, and budget play a significant role. By aligning the heat exchanger type with the application, I ensure optimal performance and long-term reliability.
Note: For specialized applications, such as medical cooling or refrigeration, copper aluminum fin heat exchangers offer a versatile and efficient solution. Their antimicrobial properties and durability make them a standout choice.
Application Scenarios
When to Choose Tube-Fin Heat Exchangers
Industrial Applications
I often recommend tube-fin heat exchangers for industrial applications due to their adaptability and robust design. These systems handle high heat loads and large fluid volumes effectively. Selecting the right materials is crucial. Copper and aluminum work well for most environments because of their excellent thermal conductivity. Stainless steel is better for corrosive settings.
The fin design also matters. Straight fins suit low-viscosity fluids, while corrugated fins perform better with high-viscosity fluids. Spiral fins enhance heat transfer in specific cases. Additionally, the tube shape—round, square, or rectangular—affects efficiency. Complex shapes provide larger heat exchange areas, making them ideal for demanding industrial setups.
Situations Requiring Durability
Durability is a key factor in many projects. Tube-fin heat exchangers excel in harsh environments. Their materials resist corrosion and wear, ensuring long-term reliability. I always check the working pressure and choose designs that are easy to clean, especially in dusty or humid conditions. This makes them a dependable choice for applications requiring consistent performance over time.
Budget-Conscious Projects
For budget-conscious projects, tube-fin heat exchangers offer significant advantages. Their design enhances heat transfer efficiency while maintaining a compact footprint. Finned tubes increase the surface area, reducing the number of tubes needed. This lowers equipment size and overall costs. Their affordability and ease of maintenance make them a practical option for projects with tight budgets.
When to Choose Microchannel Heat Exchangers
Space-Constrained Environments
Microchannel heat exchangers are my go-to choice for space-constrained environments. Their microtube technology allows for flexible form factors, fitting into small or awkward spaces. This compact design reduces the number of components required, lowering equipment costs. Their lightweight structure also simplifies installation, making them ideal for applications where space is at a premium.
High-Efficiency Requirements
When efficiency is a priority, microchannel heat exchangers outperform traditional designs. Their flat tubes with microchannels provide higher thermal performance. Louvered fins increase the heat transfer coefficient by up to 50%, while smaller diameter tubes enhance single-phase and two-phase heat transfer. These features ensure optimal performance in systems requiring maximum energy efficiency.

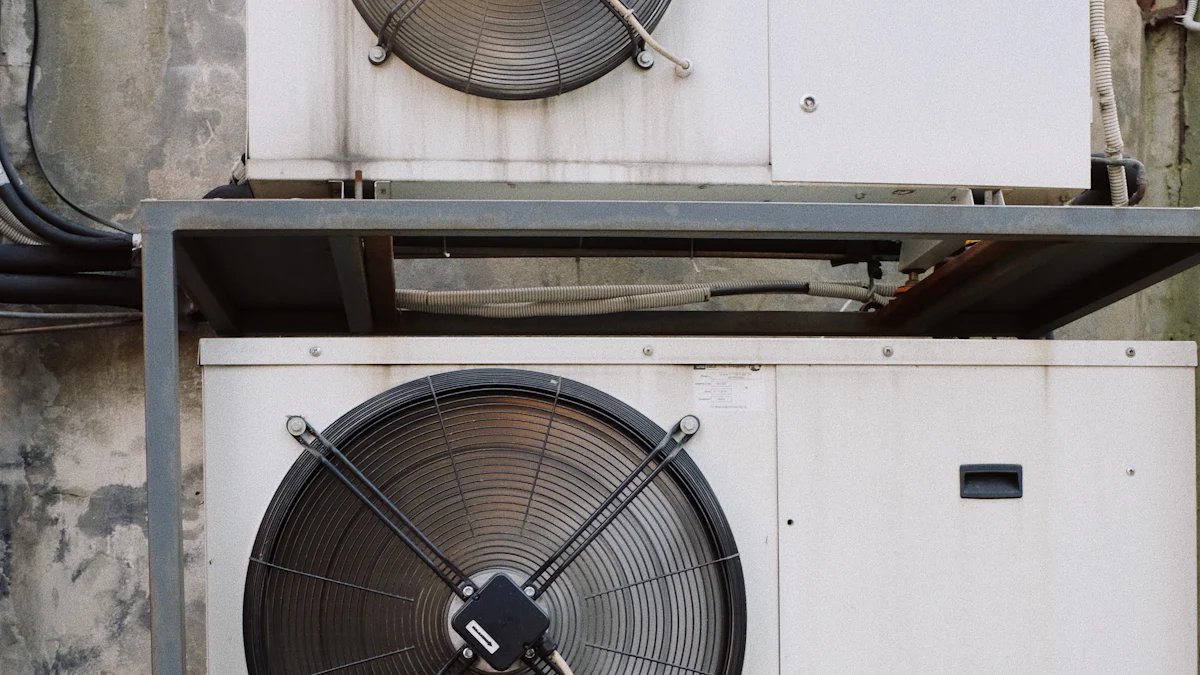

Modern HVAC Systems
Modern HVAC systems benefit greatly from microchannel heat exchangers. They use up to 50% less refrigerant, reducing environmental impact and operational costs. Brazed assembly eliminates contact resistance, improving efficiency. Reduced airflow turbulence minimizes air shadows, while lower airside pressure drops decrease fan power consumption. These features make microchannel systems a perfect fit for advanced HVAC applications.
Tip: For specialized applications like refrigeration or medical cooling, Copper Aluminum Fin Heat Exchangers provide a versatile and efficient solution. Their antimicrobial properties and durability make them a standout choice.
Choosing the right heat exchanger depends on understanding their unique strengths. Tube-fin heat exchangers offer durability and cost-effectiveness, while microchannel systems excel in efficiency and compactness. Copper aluminum fin heat exchangers complement both by providing corrosion resistance and adaptability for harsh environments. Their lightweight design simplifies installation and enhances system reliability.
When selecting a heat exchanger, I always consider factors like thermal output, fluid properties, and space constraints. A well-matched heat exchanger improves performance, reduces costs, and ensures long-term efficiency. Aligning the choice with application needs guarantees the best results for any system.
FAQ
What is the main difference between tube-fin and microchannel heat exchangers?
Tube-fin heat exchangers use round tubes and fins to transfer heat, while microchannel systems rely on flat tubes with microchannels. Tube-fin designs prioritize durability and cost-effectiveness. Microchannel systems focus on compactness and efficiency, making them ideal for modern applications.
Are copper aluminum fin heat exchangers better than traditional designs?
Yes, I find copper aluminum fin heat exchangers superior in many cases. Copper’s thermal conductivity ensures efficient heat transfer, while aluminum fins enhance airflow. Their antimicrobial properties and durability make them ideal for applications requiring hygiene and reliability.
Which heat exchanger is best for space-constrained environments?
Microchannel heat exchangers work best in tight spaces. Their compact design and lightweight structure allow them to fit into small areas. They also reduce the number of components needed, making them perfect for modern HVAC systems and automotive cooling.
How do I maintain a tube-fin heat exchanger?
I recommend regular cleaning using methods like high-pressure water jets or acid cleaning. Inspect the tubes and fins for fouling or damage. Replace clogged or damaged tubes promptly. Following these steps ensures consistent performance and extends the system’s lifespan.
Why are microchannel heat exchangers more efficient?
Their flat tubes with microchannels increase the surface area for heat transfer. Louvered fins further enhance thermal performance. This design reduces air pressure drops and improves energy efficiency, making them 20-40% more efficient than traditional tube-fin systems.
Can copper aluminum fin heat exchangers resist corrosion?
Yes, they resist corrosion effectively. Copper resists oxidation, while aluminum forms a protective oxide layer. This combination ensures durability, even in harsh environments. I’ve seen them perform well in industrial and outdoor settings.
What applications benefit most from copper aluminum fin heat exchangers?
These heat exchangers excel in refrigerators, freezers, medical cooling systems, dehumidifiers, and ice makers. Their antimicrobial properties improve air quality, while their durability ensures reliable performance. I recommend them for any application requiring efficiency and hygiene.
Are microchannel heat exchangers eco-friendly?
Yes, they use up to 50% less refrigerant than traditional systems. This reduces environmental impact and operating costs. Their energy-efficient design also lowers power consumption, making them a sustainable choice for modern cooling systems.
Tip: Always choose a heat exchanger based on your specific application needs. This ensures optimal performance and long-term reliability.
