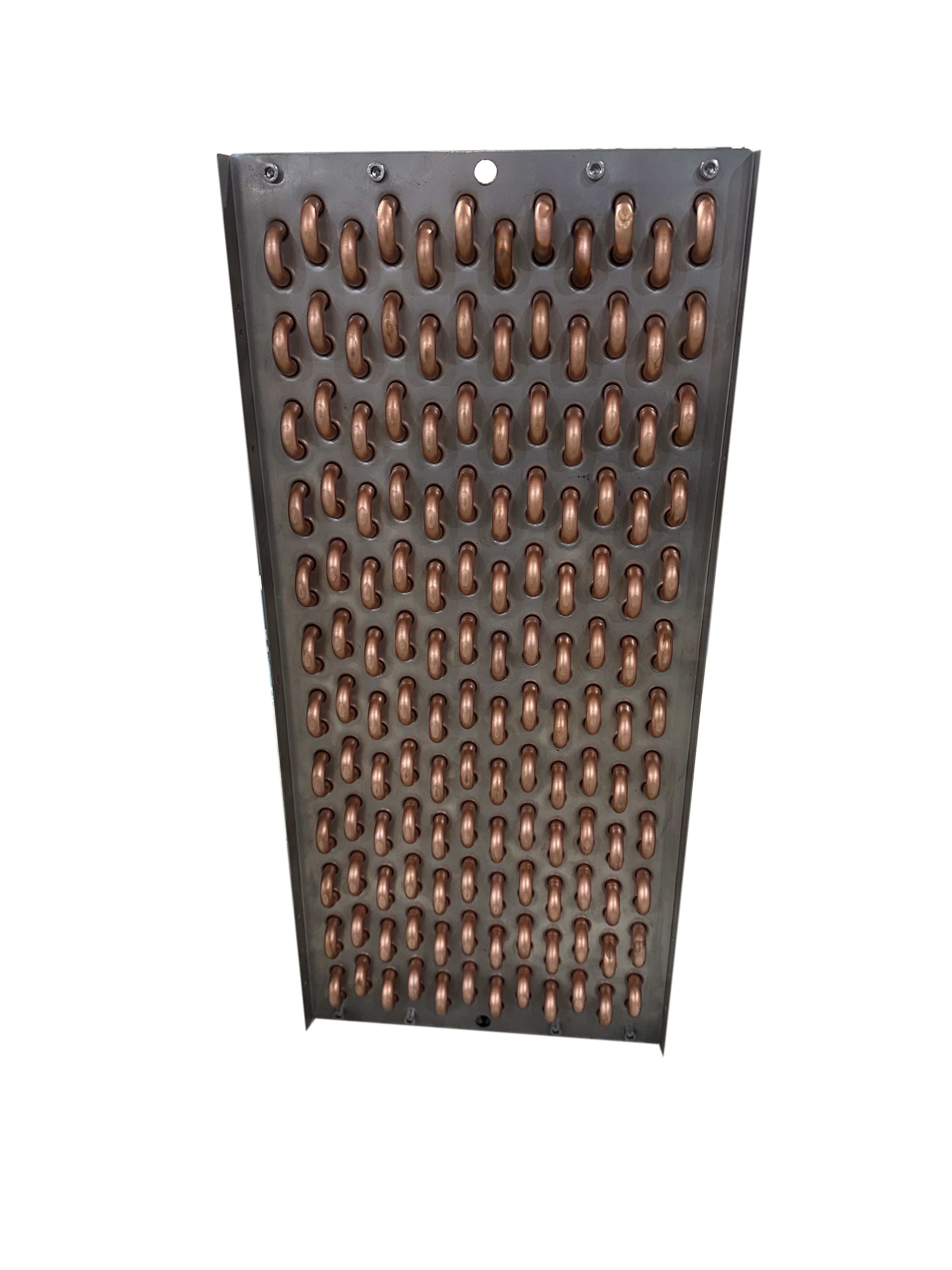

Copper Fin Heat Exchanger

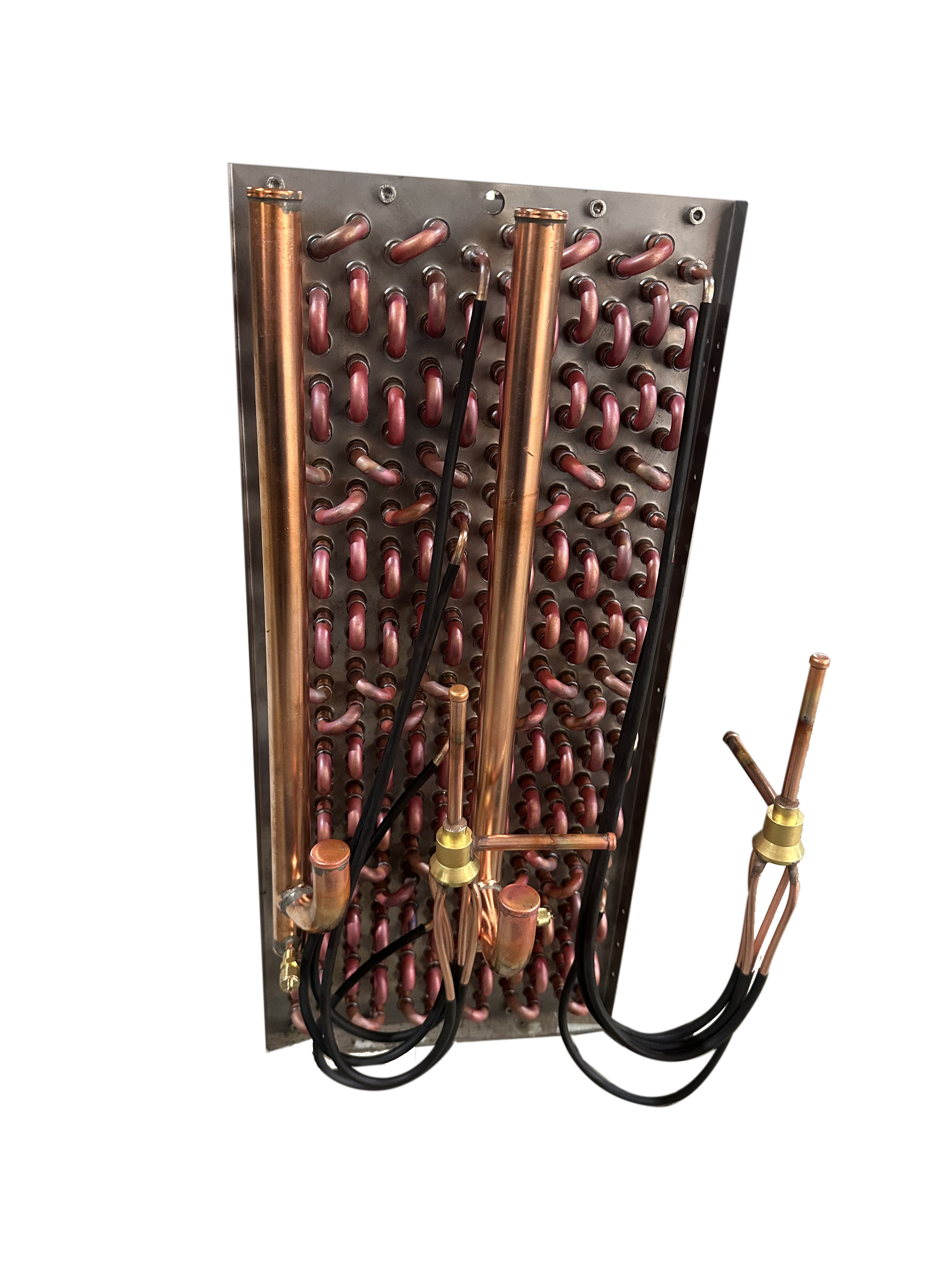

Commercial Indoor Air Handling Unit Condenser with Copper Tubes & Hydrophilic Fin Heat Exchange Evaporator
Product introduction
Product specification
Product name: Condenser
Materials: Copper tube Copper fin, Stainless steel plate
Tube O.D：7mm
Aluminum fin: Hydroponic fin or bare fin
Fin type: Smooth sine wave fin
Fin space:2.5mm ect.
This integrated heat exchange unit is designed for commercial air handling systems, combining a condenser and evaporator into a single high-efficiency module. It utilizes corrosion-resistant copper tubes and hydrophilic aluminum fins to maximize heat transfer efficiency. During operation, refrigerant flows through the copper tubes, while the hydrophilic fins rapidly absorb and disperse condensation, preventing water retention and microbial growth. Compatible with both cooling and fresh air ventilation modes, it achieves a heat exchange efficiency of 85% and supports temperature control from 10°C to 30°C, ideal for large-scale commercial spaces requiring stable humidity and air quality.
Shopping Mall Ventilation Systems
In central air conditioning systems for shopping malls, the unit simultaneously cools incoming fresh air and removes excess humidity. For example, during summer peak hours, it cools 2,000m³/h of outdoor air (35°C, 70% RH) to 24°C with 50% RH, reducing HVAC energy consumption by 18% compared to traditional systems.
Hospital Clean Air Circulation
For hospital isolation wards requiring strict air quality (PM2.5 <15μg/m³), the hydrophilic fins prevent condensation-induced microbial growth. In a 100m² ICU, the unit maintains 22°C±0.5°C with 55% RH while filtering 99% of airborne particles through integrated HEPA modules.
High-End Hotel Energy Recovery
In luxury hotel HVAC systems, the unit recovers waste heat from exhaust air to pre-cool incoming fresh air. During winter, it transfers 70% of exhaust heat to supply air, reducing boiler workload. A 50-story hotel using this system reported 25% annual energy savings.
